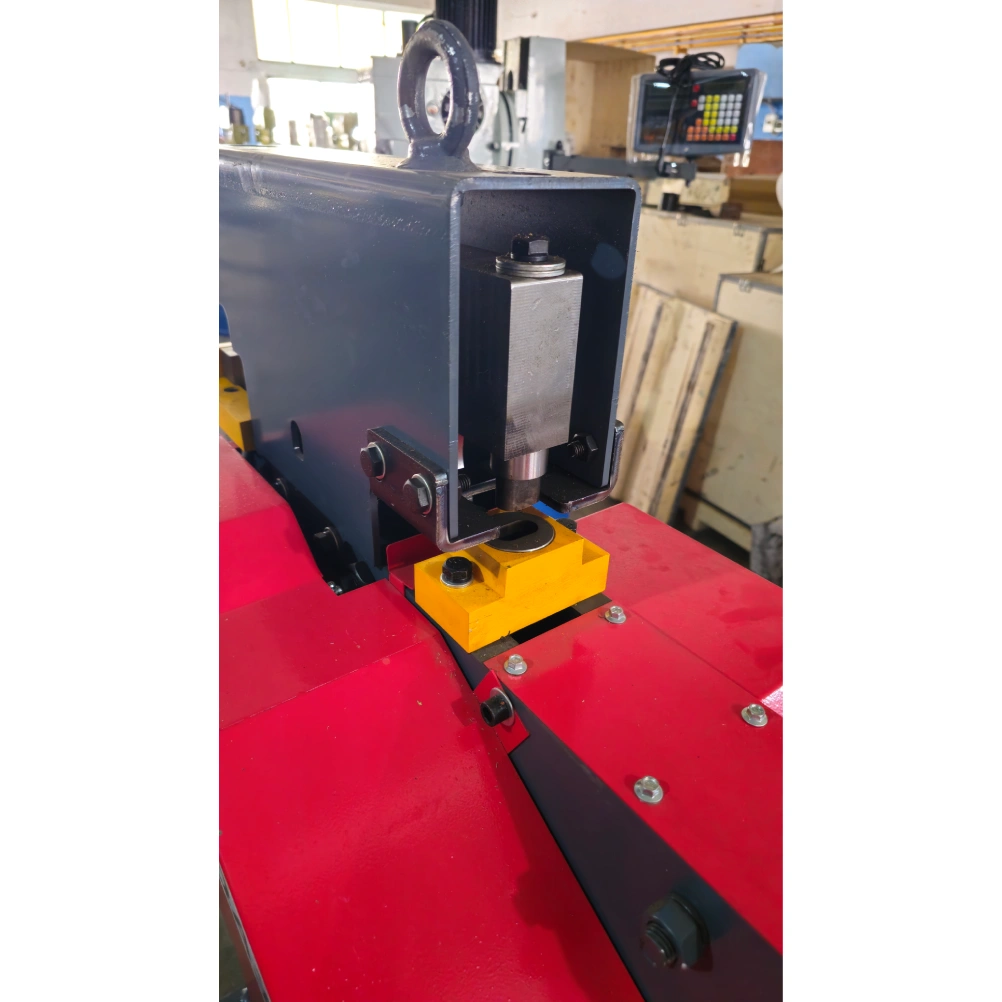

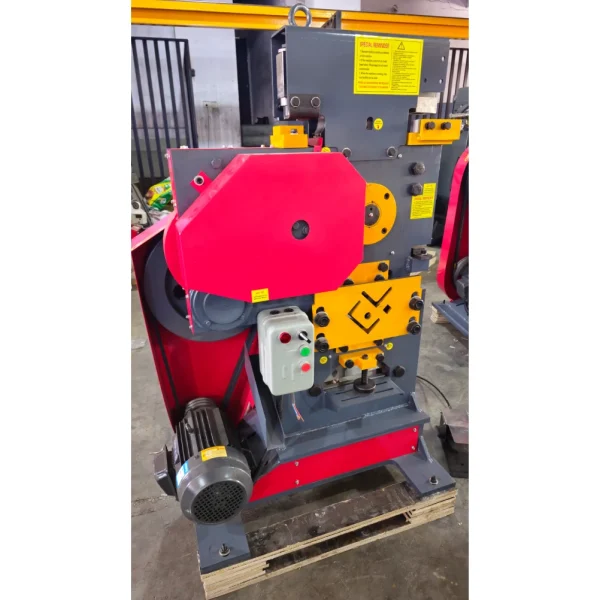

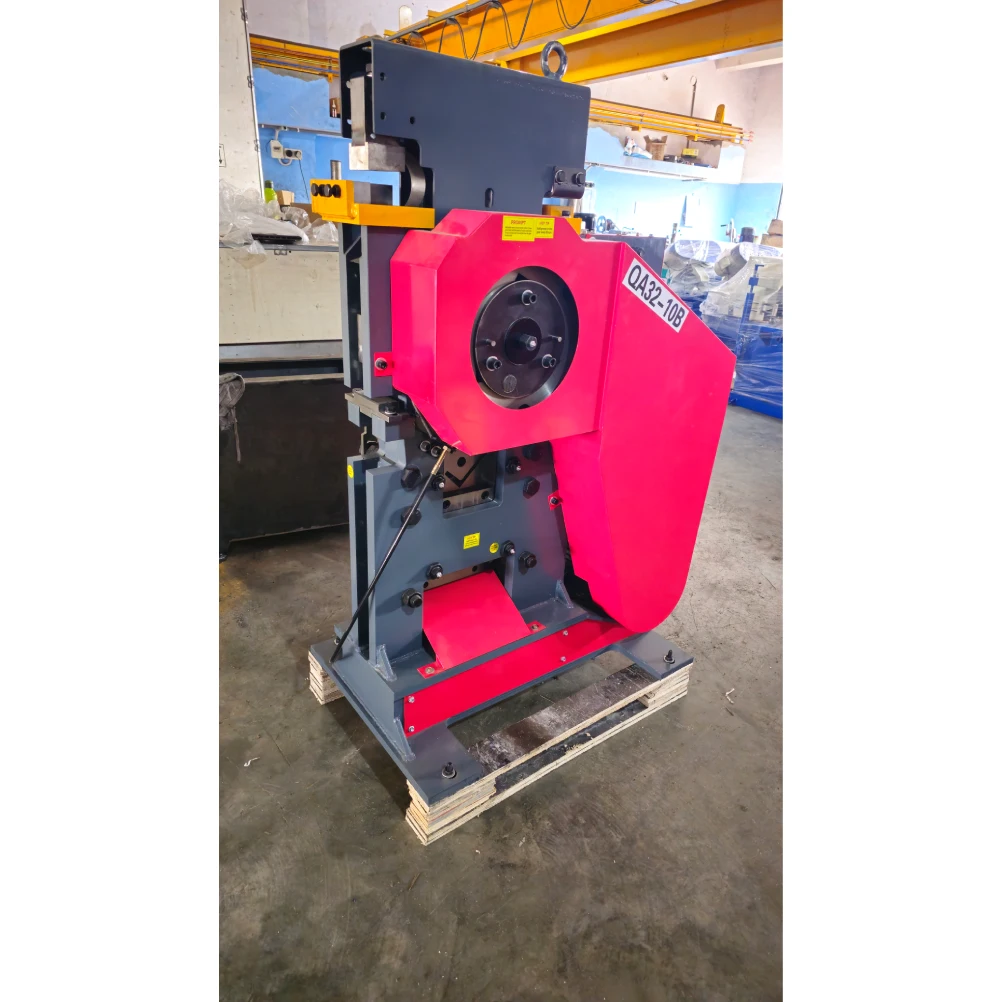

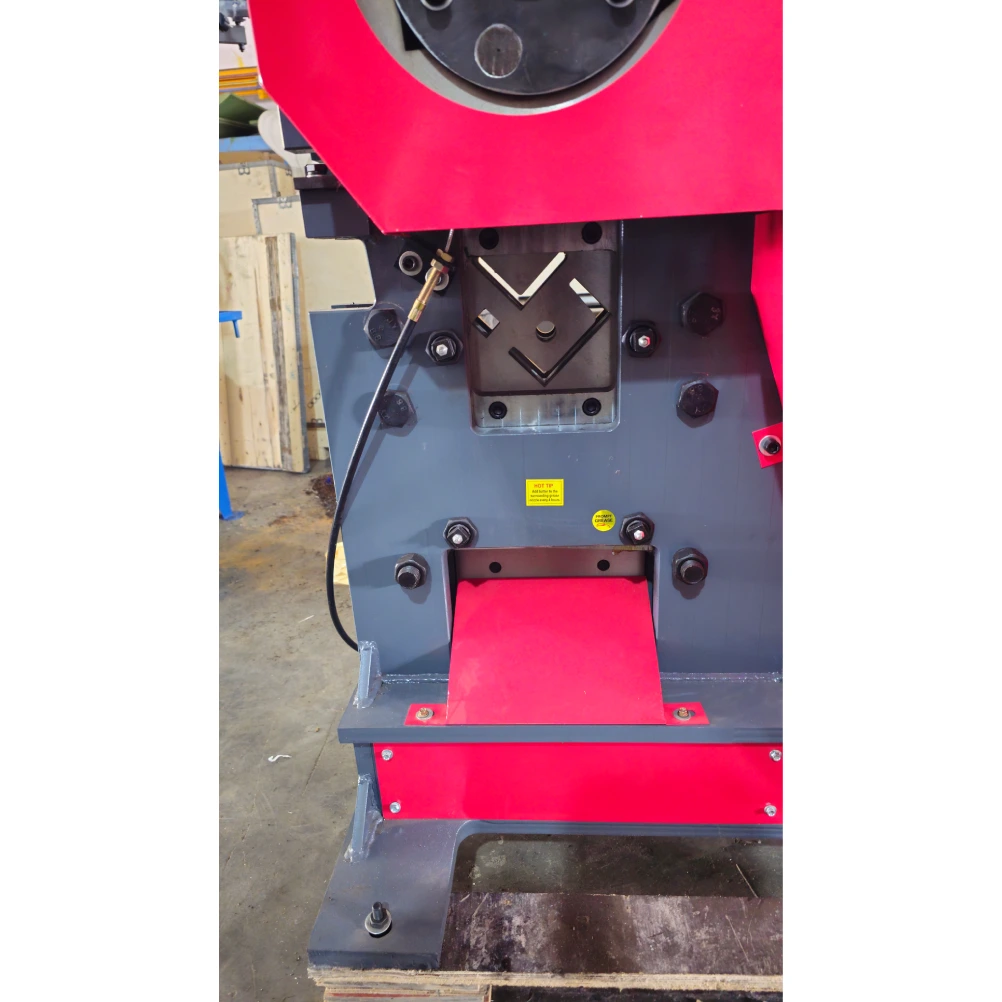

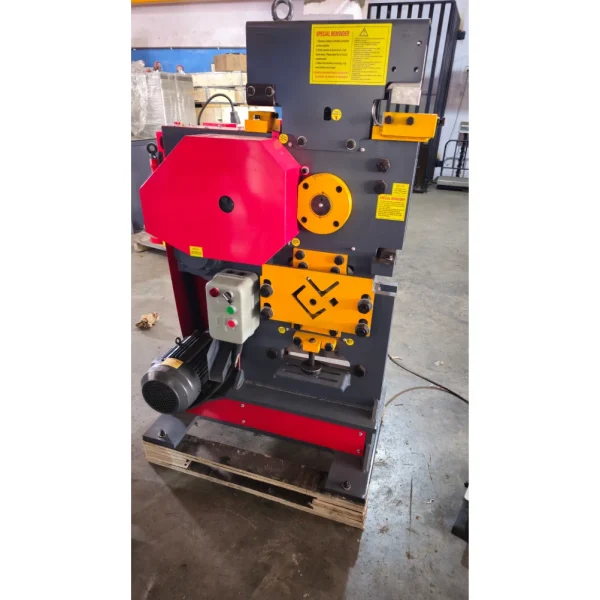

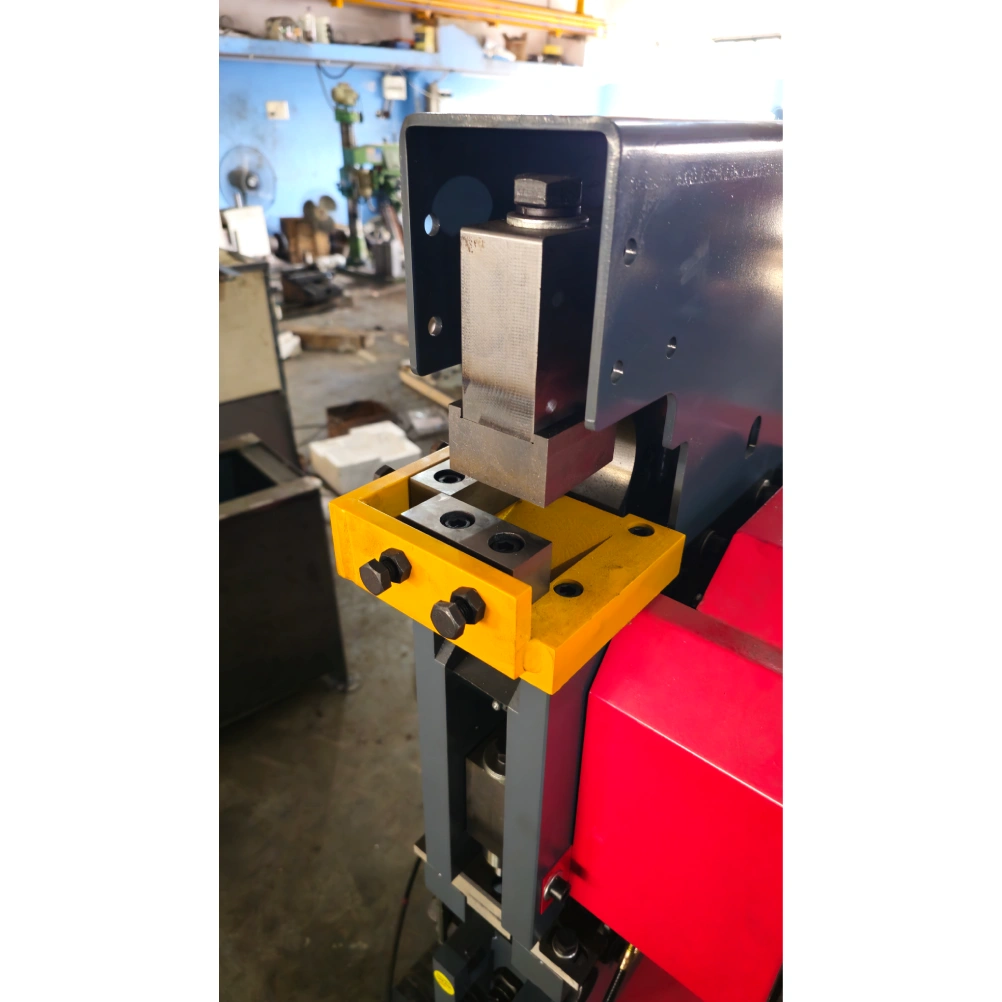

Multipurpose Iron Worker Machine QA-32 10B

Salient Features:

₹ 95,000

  • All in One Combine Punching, Shearing, Notching
  • High Production & Efficiency
  • Heavy Duty Construction
  • Quick Change Dies
Add to Quote

Description

Technical Specifications Accessories Applications Videos FAQs



MODELQA-32 10B
Max Punching Force50 TON
Cutter Travel30 MM
Cutter Speed30 TIMES / MIN
Motor Power3 KW, 440V
Angle Cutting65 X 65 MM
Flat Cutting230 X 10 MM
Round Cutting20 MM
Square Cutting20 X 20 MM
Channel Cutting100 X 50 MM / 75 X 40 MM
Round Hole Punching26 X 10 MM

A:- The QA-32 10B is a heavy-duty hydraulic iron worker machine designed for multipurpose metalworking tasks. It combines operations like punching, shearing, notching, and bending in one machine, making it ideal for fabrication workshops, construction sites, steel plants, and heavy industries.
A:- The QA-32 10B typically punches up to 30–38 mm diameter holes in mild steel plates (depending on thickness and material grade). With special tooling, custom hole sizes and shapes can also be punched.
A:- The QA-32 10B is designed to cut and punch mild steel, stainless steel, alloy steel, aluminum, copper, and other ferrous & non-ferrous metals within its rated capacity.
A:- This model usually operates on a 3-phase electric motor, ranging between 5 HP to 7.5 HP, depending on the configuration.
