| ITEM | ZAY7025FG | ZAY7032FG | ZAY7045FG | ZAY7040FG |
|---|---|---|---|---|
| Max Face Mill Capacity | 25mm | 32mm | 40mm | 45mm |
| Max End Mill Capacity | 63mm | 63mm | 80mm | 80mm |
| End Milling Capacity | 20mm | 20mm | 32mm | 32mm |
| Max.Distance Form Spindle Nose to Table | 445mm | 450mm | ||
| Min.Distance Form Spindle Axis to Column | 203mm | 260mm | ||
| Spindle Travel | 80mm | 130mm | ||
| Spindle transparency | M.T.3 or R8 | M.T.3 or R8 | M.T.4 or R8 | M.T.4 or R8 |
| Step of Spindle Speed | 6 | 6 | ||
| Range of Spindle Speed 50Hz | 95-1420 r.p.m | 80-1250 r.p.m | ||
| Range of Spindle Speed 60Hz | 115-1700 r.p.m | 95-1500 r.p.m | ||
| Swivel Angle of Headstock (perpendicularly) | 90° | 90° | ||
| Table Size | 520x160mm | 800x240mm | ||
| Forward and Backward Travel of Table | 140mm | 175mm | ||
| left and Right Travel of Table | 290mm | 500mm | ||
| Motor Power | 0.37KW | 0.75KW(1HP) | 1.1KW(1.5HP) | 1.5KW(2HP) |
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
|---|---|
| Allen Wrench | Drill Chuck |
| Wedge | Milling Cutter Holder |
| Tie Rod | Mill Chuck |
| Power Feed Attachment | |
| Auto-Tapping Electrical | |
| Paraller Vise | |
| Working Lamp | |
| Coolant System | |
| Machine Stand and Chip Tray | |
| Rotary Table | |
| 2-Axis DRO, 3-Axis DRO |

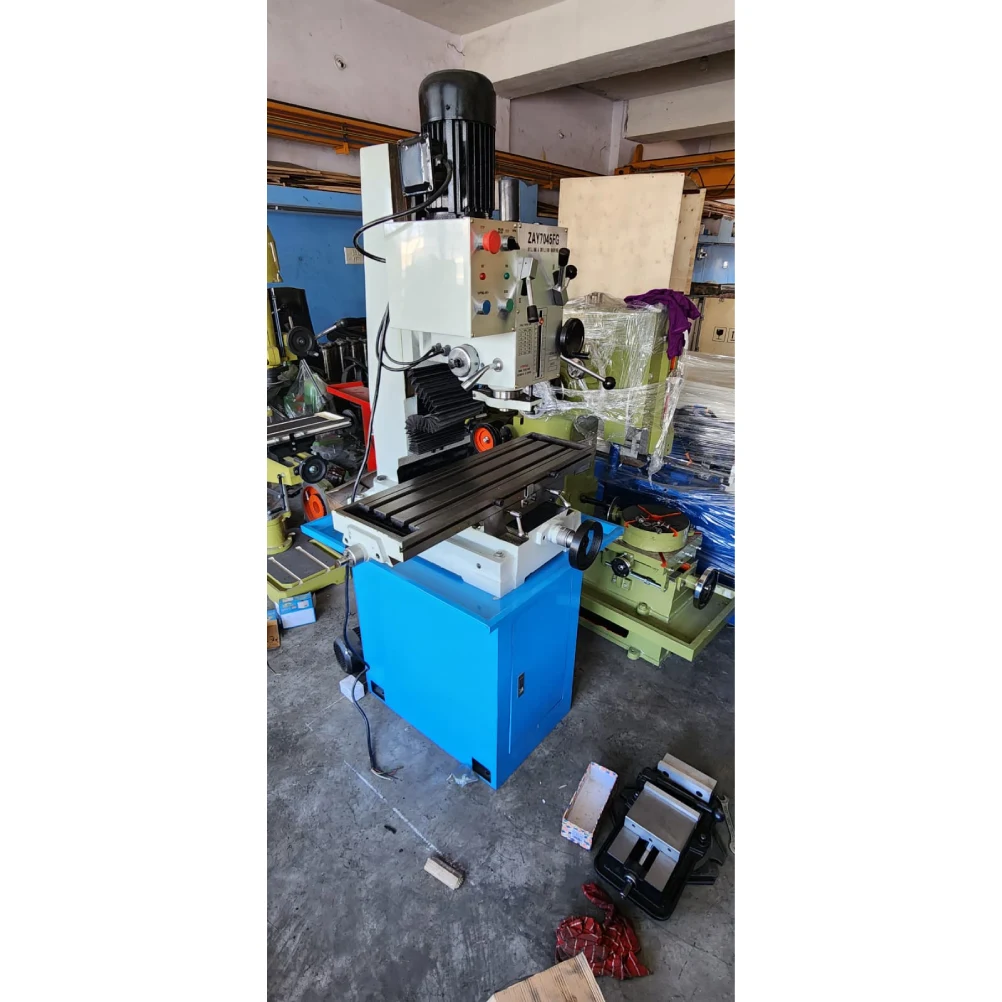

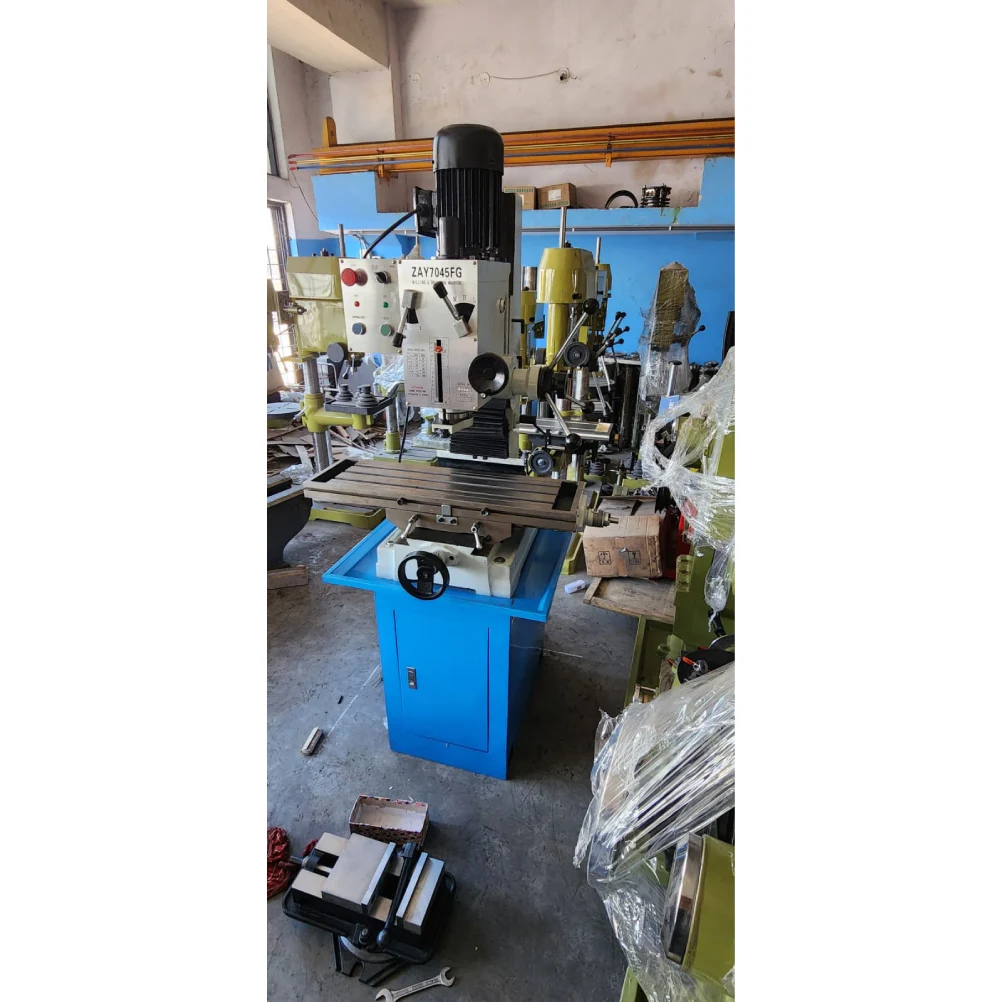

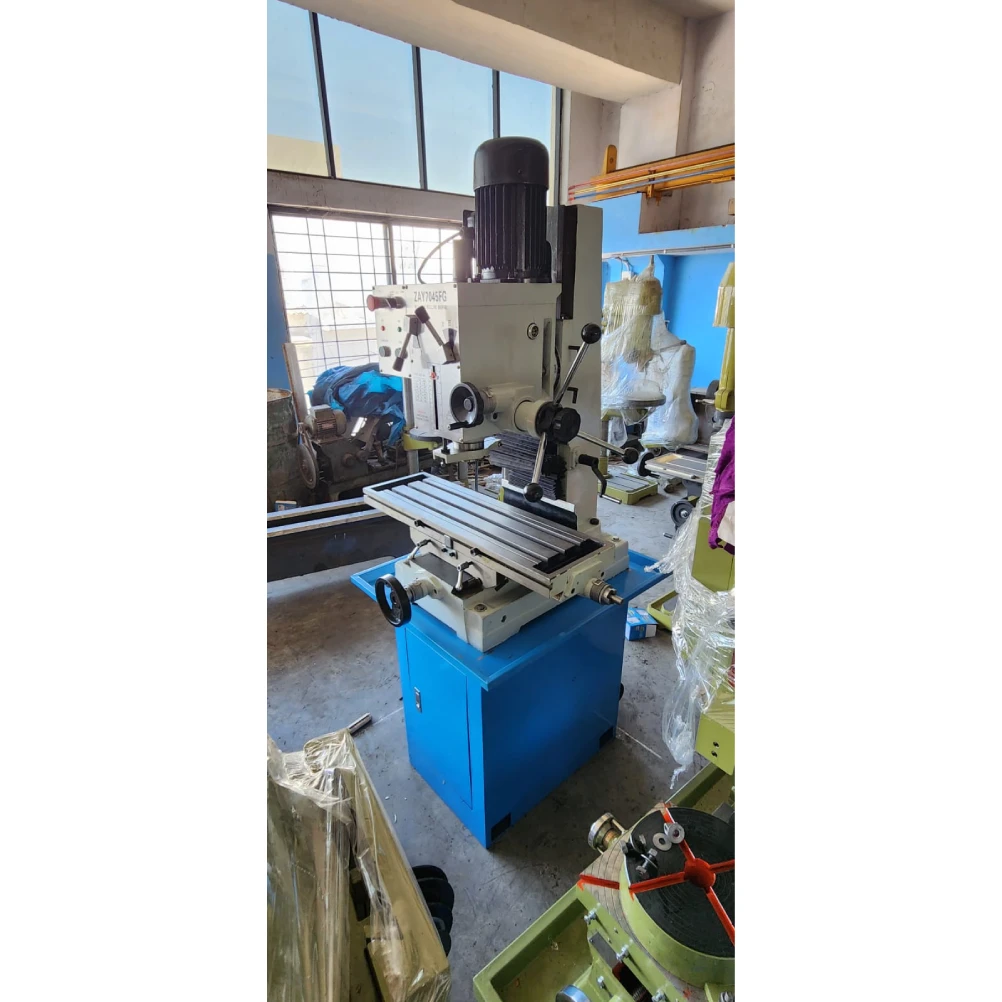

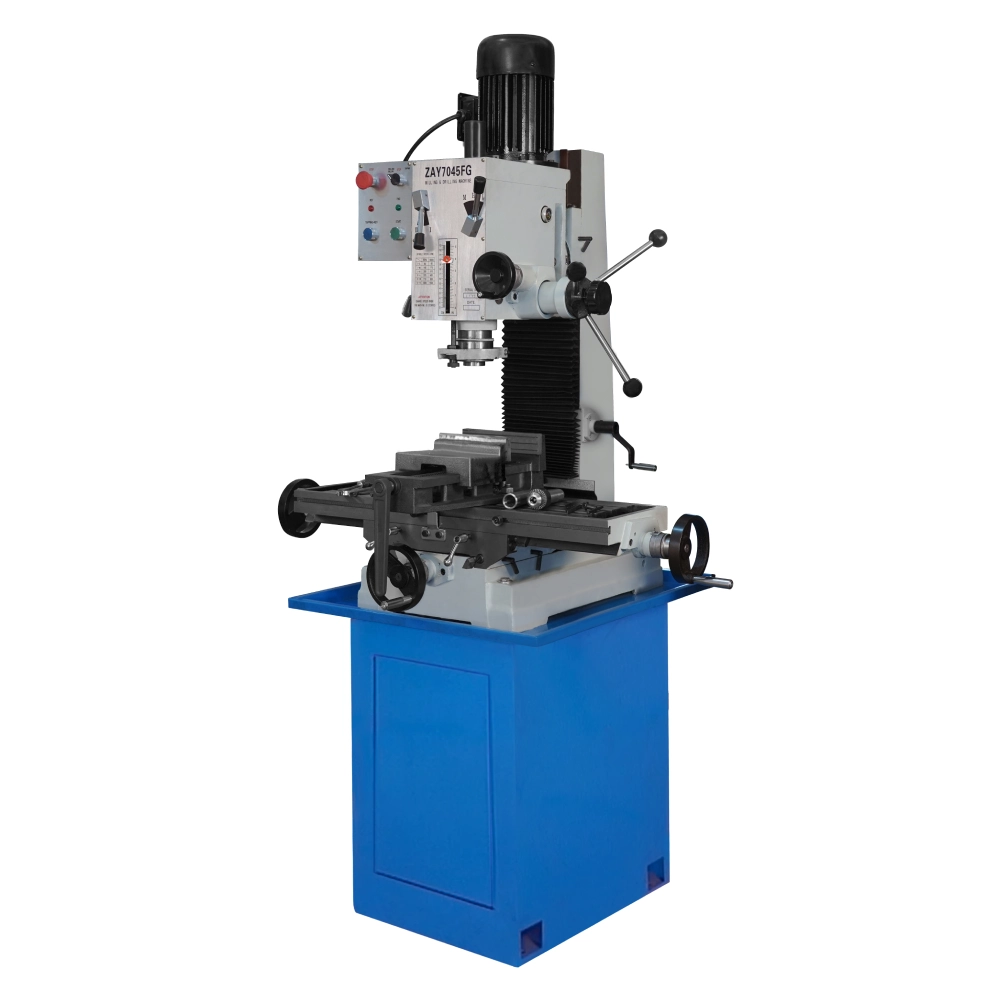

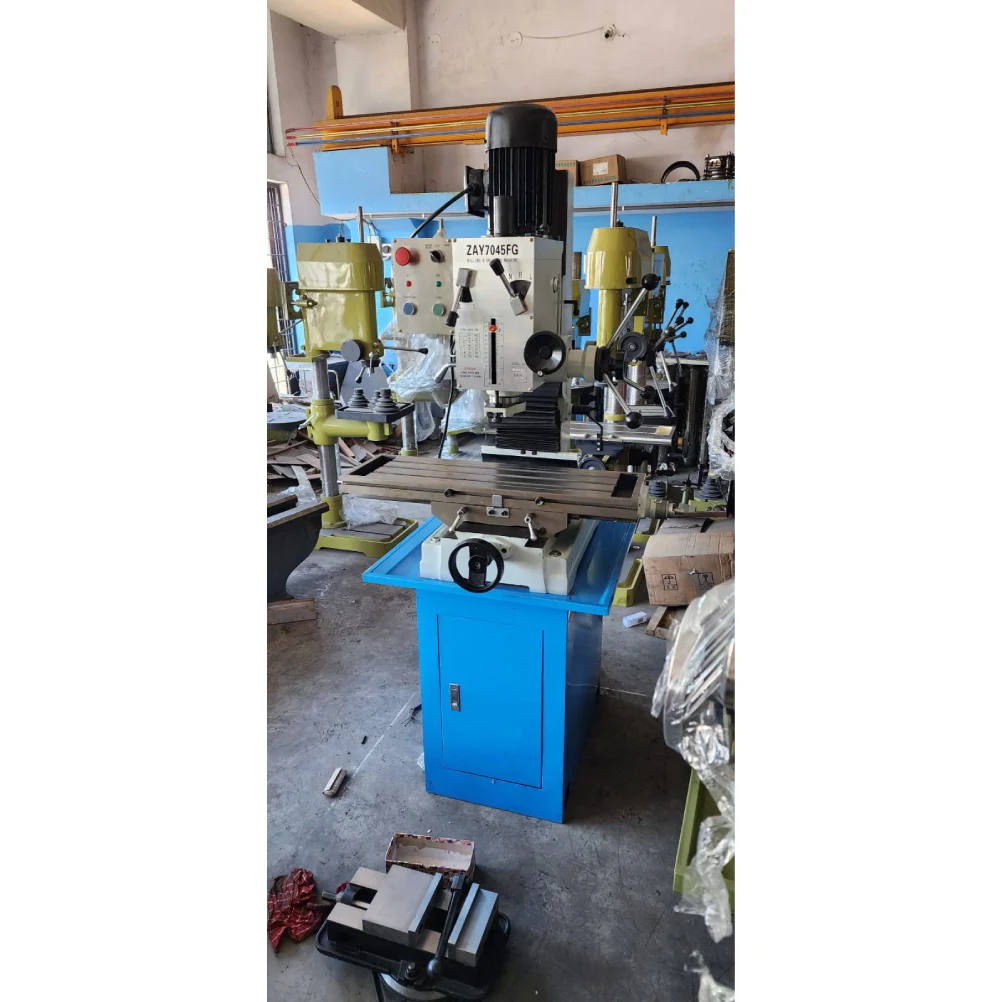

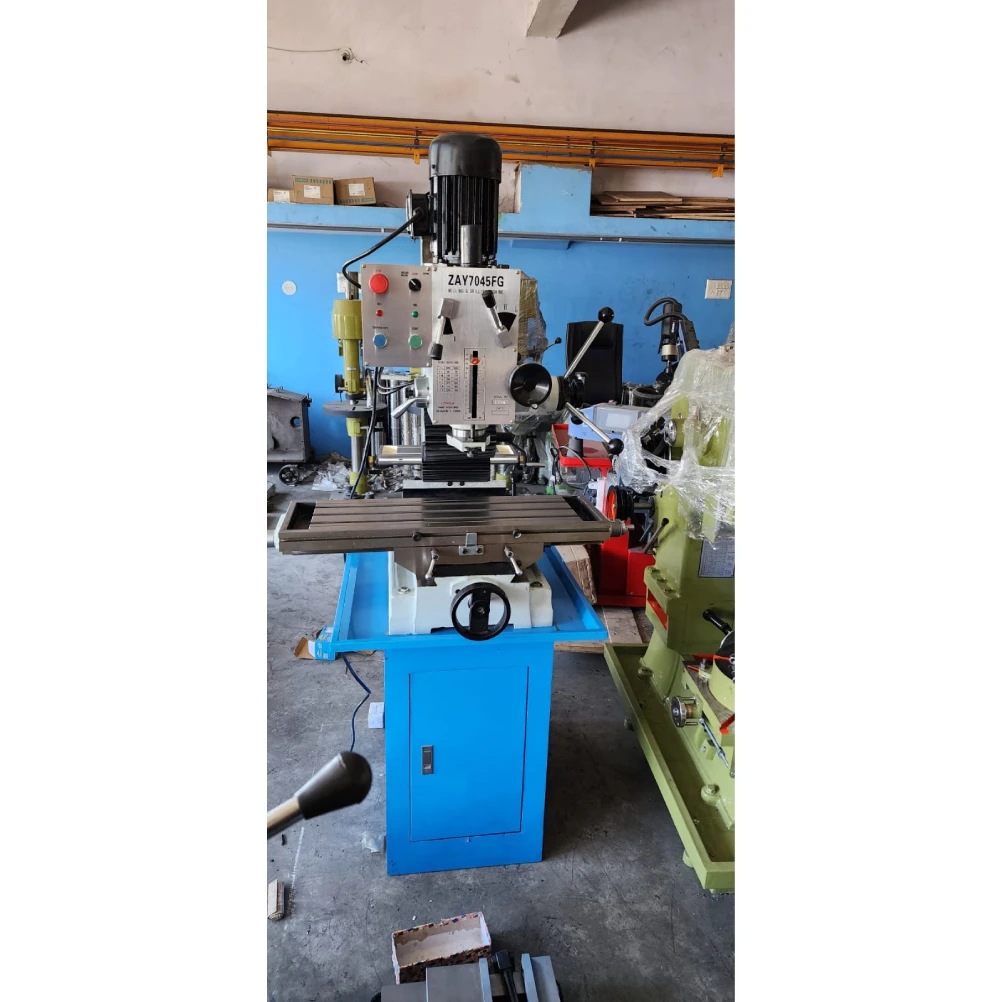

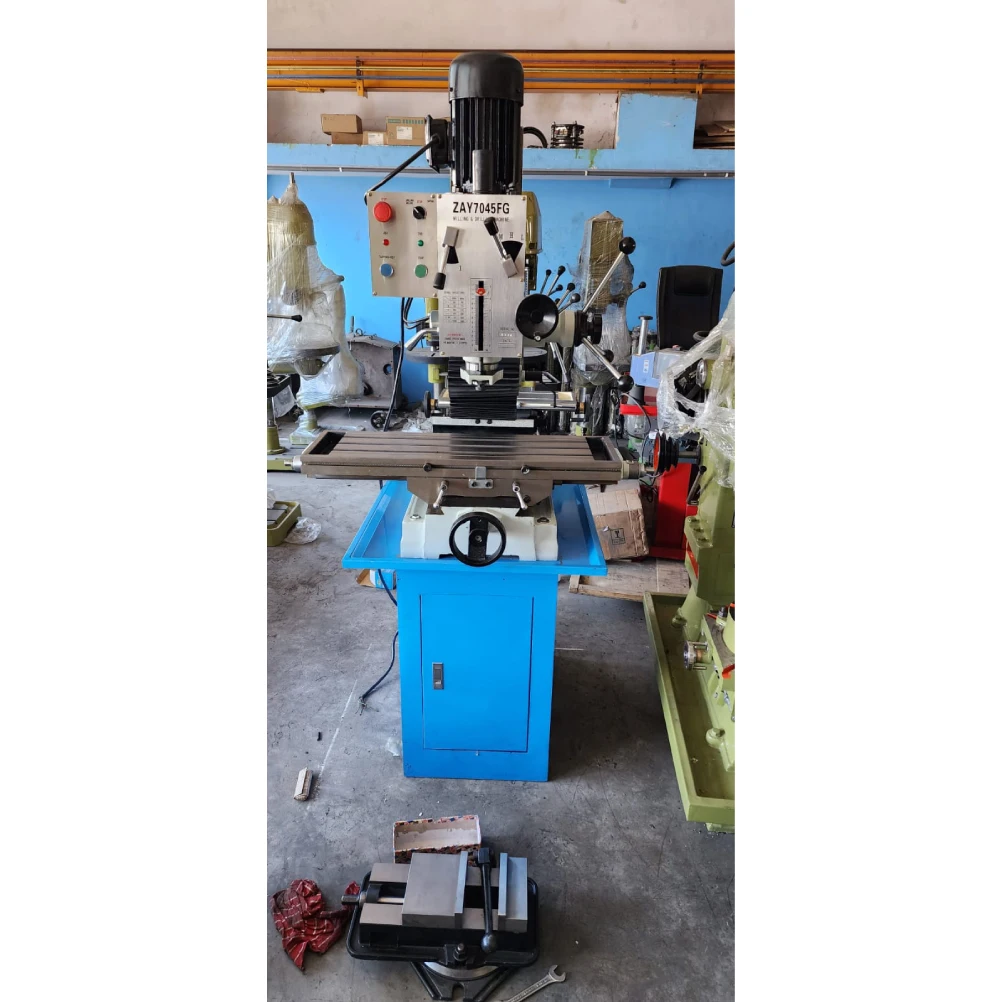

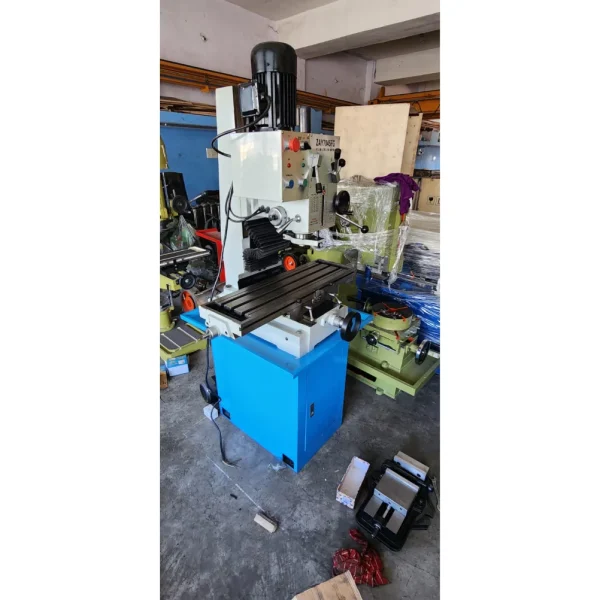

A:- The ZAY7045FG is a multipurpose drilling and milling machine designed for precision drilling, milling, boring, tapping, and reaming operations. It is ideal for workshops, tool rooms, maintenance departments and small-scale production units.
A:- It is suitable for end milling up to 28 mm and face milling up to 80 mm, making it efficient for small and medium-sized milling jobs.
A:- The ZAY7045FG uses a MT4 (Morse Taper No.4) spindle, allowing compatibility with a wide range of drilling and milling tools.
A:- It comes with an adjustable gear-driven speed system, providing multiple spindle speeds (usually 75–1600 RPM) to suit different drilling and milling operations.
A:- The machine can handle mild steel, stainless steel, aluminum, brass, cast iron, and other ferrous and non-ferrous metals within its rated capacity.
