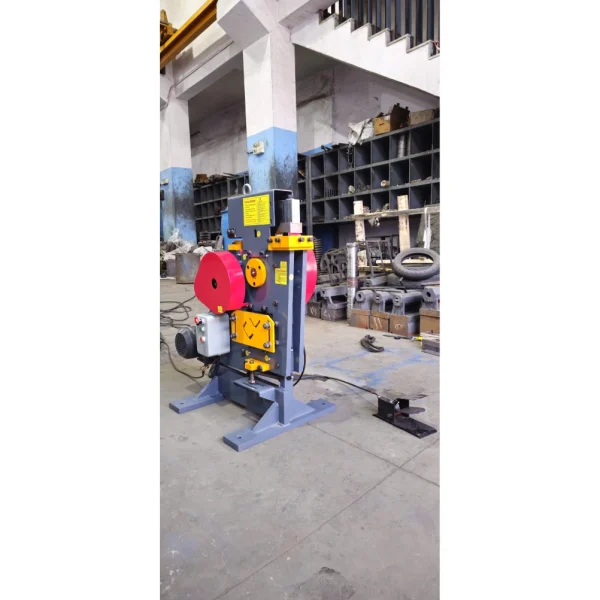

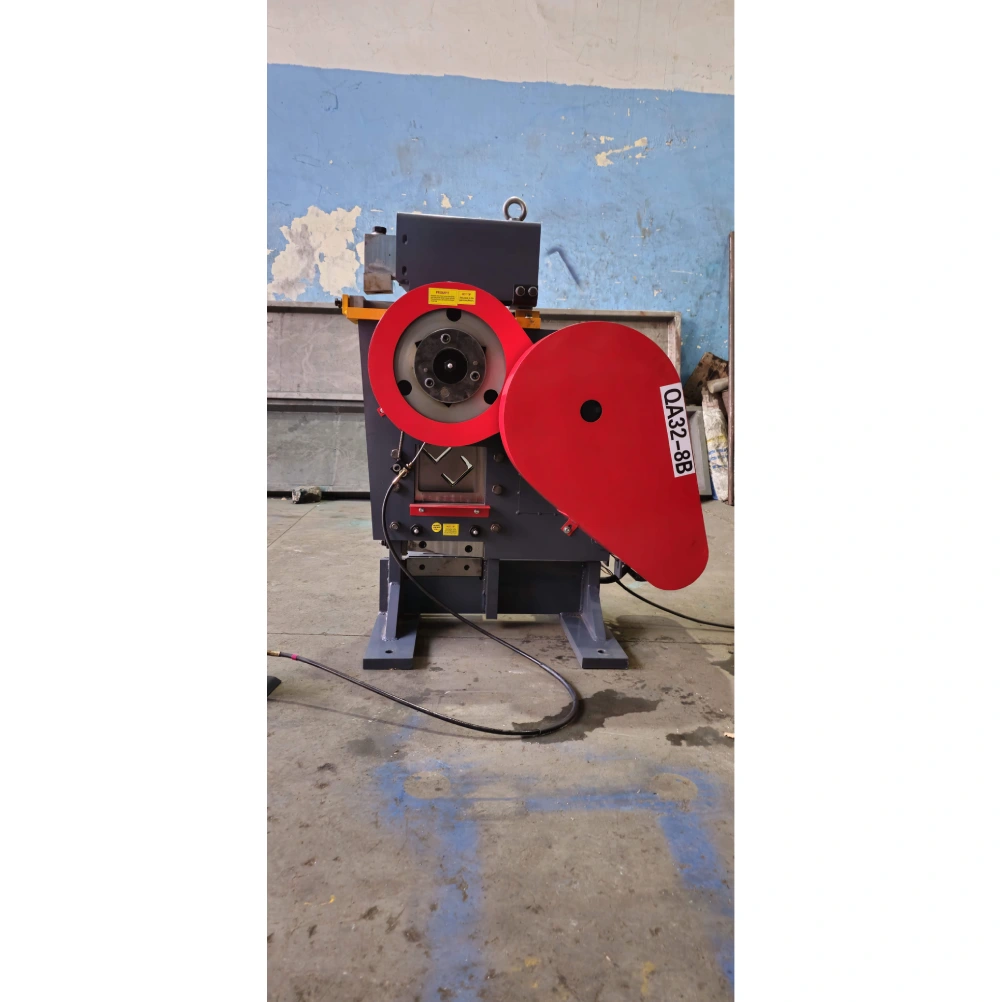

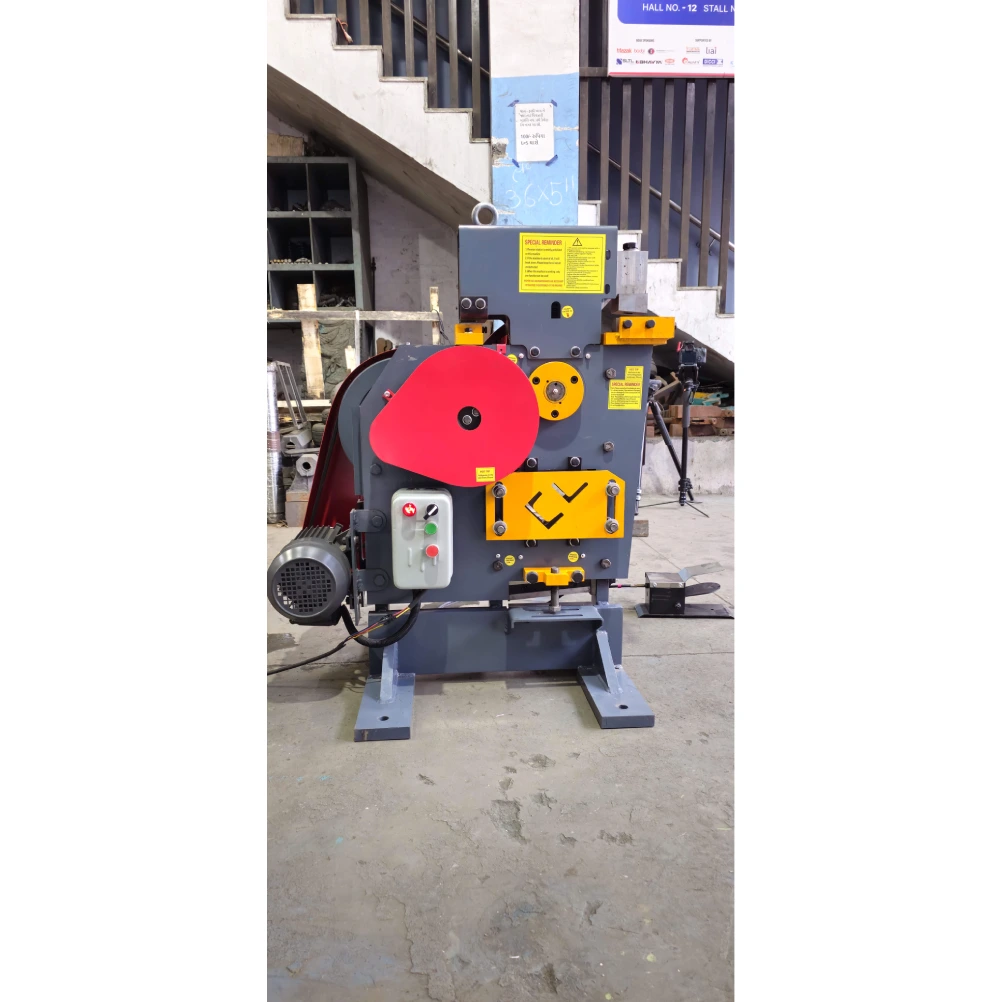

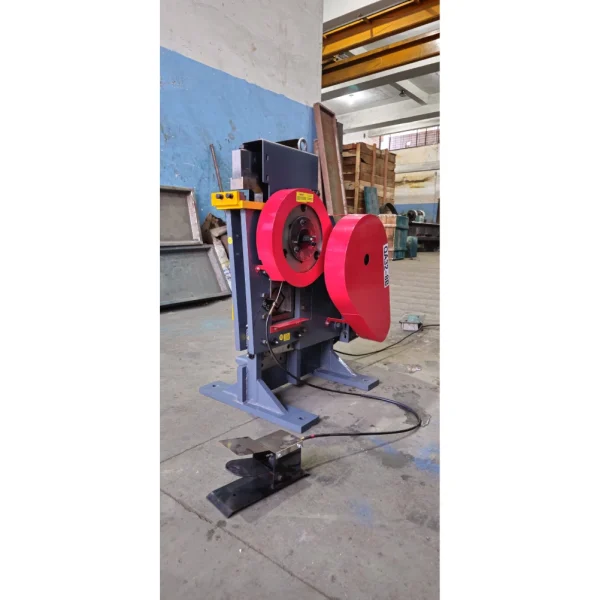

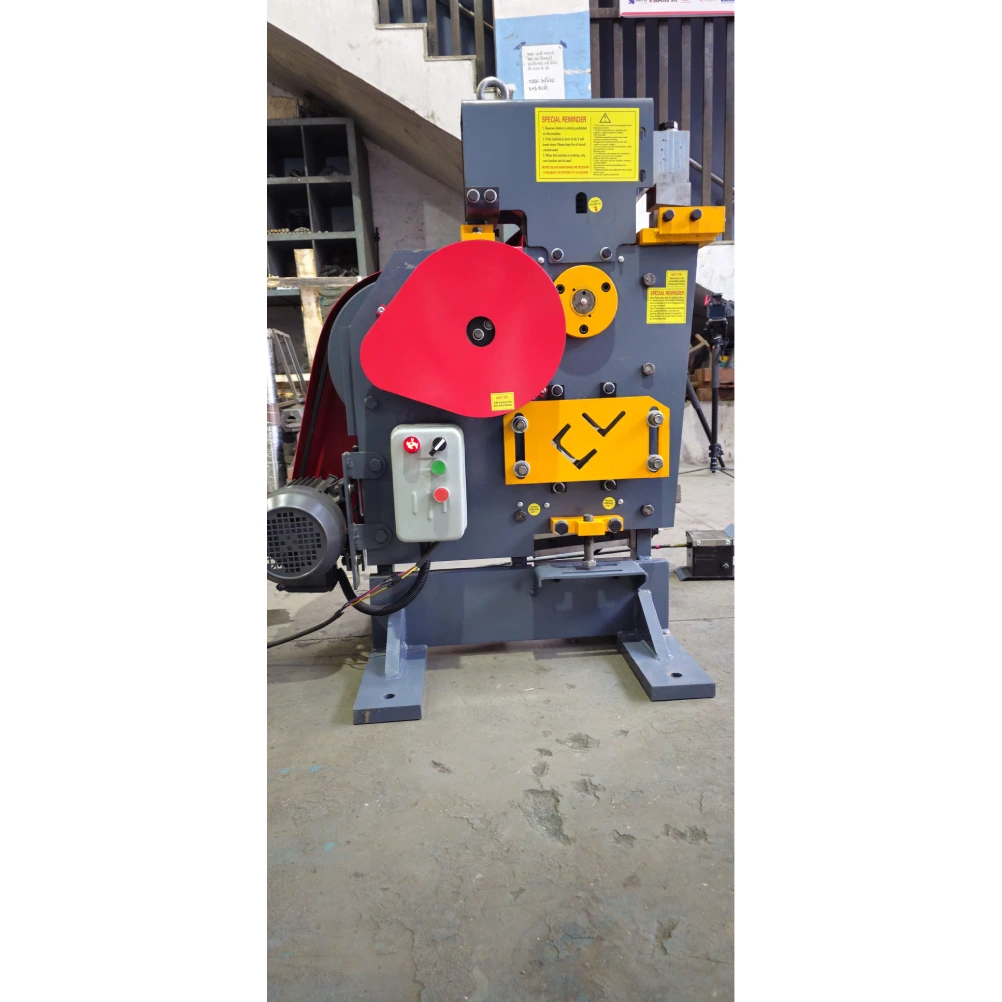

Multipurpose Iron Worker Machine QA-32 8B

Salient Features:

₹ 95,000

  • All in One Combine Punching, Shearing, Notching
  • High Production & Efficiency
  • Heavy Duty Construction
  • Quick Change Dies
Add to Quote

Description

Technical Specifications Accessories Applications Videos FAQs



MODELQA-32 8B
Max Punching Force36 TON
Cutter Travel27 MM
Cutter Speed30 TIMES / MIN
Motor Power2.2 KW, 440V
Angle Cutting75 X 75 MM
Flat Cutting180 X 8 MM
Round Cutting25 MM
Square Cutting20 X 20 MM
Channel Cutting75 X 40 MM
Round Hole Punching22 X 8 MM

A:- The QA-32 8B is a versatile hydraulic iron worker machine designed for multiple metalworking operations such as punching, shearing, notching, and bending. It is a compact and powerful machine ideal for fabrication workshops, steel plants, and maintenance units.
A:- It can typically punch holes up to 25–32 mm in diameter (depending on thickness and material strength). Custom tooling can also be used for special punching requirements.
A:- The QA-32 8B can handle a variety of materials such as mild steel, stainless steel, aluminum, copper, and other ferrous & non-ferrous metals within its rated capacity.
A:- This machine generally operates on 3-phase power supply with motor capacity around 3 HP to 5 HP (depending on model specifications).
A:- Yes, with specially designed dies and attachments, the machine can perform custom punching and notching as per user requirements.
