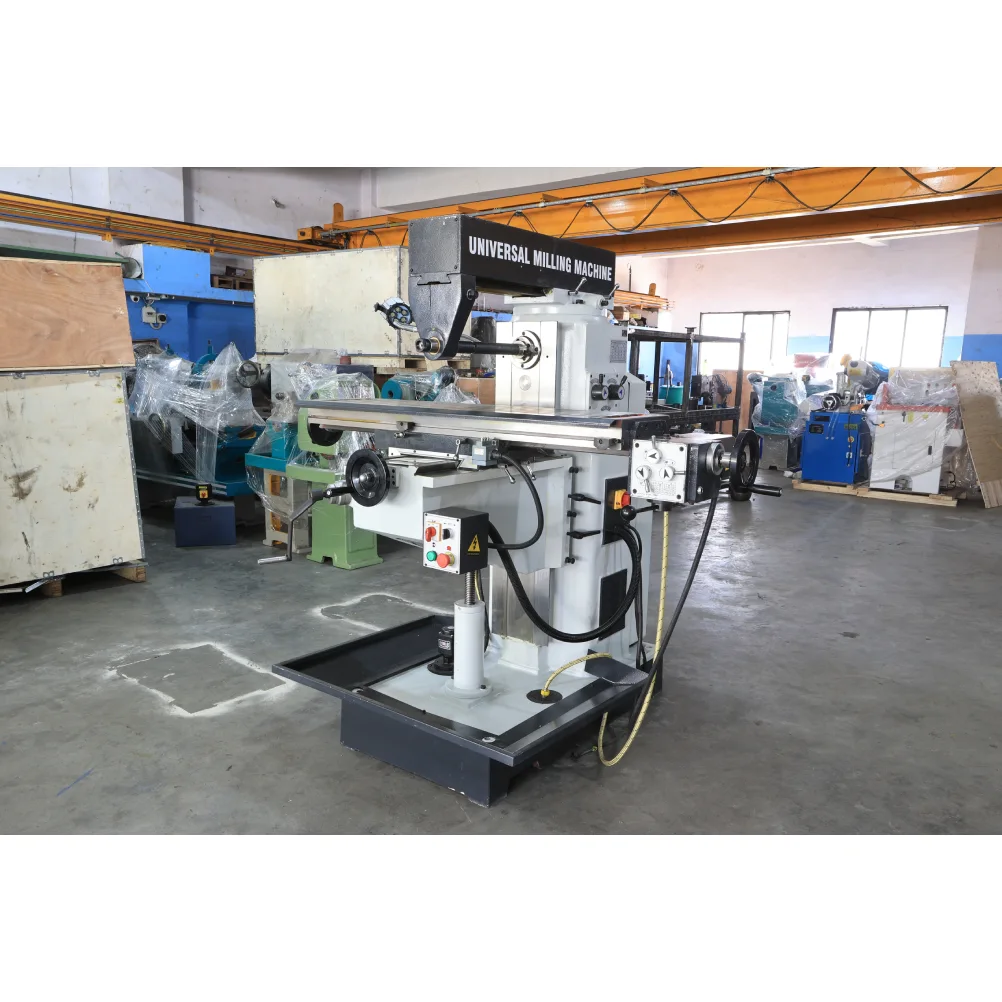

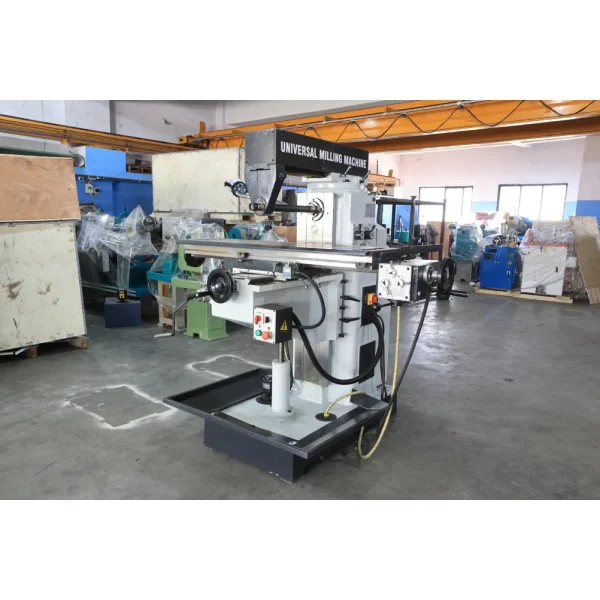

| Model Name | GMT - 2X |
|---|---|
| Table Size(mm) | 1200x280 |
| X/Y/Z Axis Travel(mm) | 600/320/300 |
| Table Feed Speed(mm/min) | 13-265 |
| No. of Table Feed | 8 Speed |
| Spindle Morse Taper | ISO40 |
| Spindle Speed Range(rpm) | 40-1350 |
| No.of Spindle Speed | 12 Speed |
| Arbor Diameter(mm) | Ø25.4 |
| Distance From Spindle to Table(mm) | 0-400 |
| Distance From Spindle to Beam(mm) | 175 |
| Table T-slot Number/Width/Pitch(mm) | 3/14/70 |
| Main Drive Motor Power(kw) | 3 |
| Worktable Motorized Feed Motor Power(w) | 750 |
| Cooling Pump Motor Power(w) | 40 |
| N.W/G/W(kg) | 1450/1550 |
| Dimensions(mm) | 1680x1480x2150 |

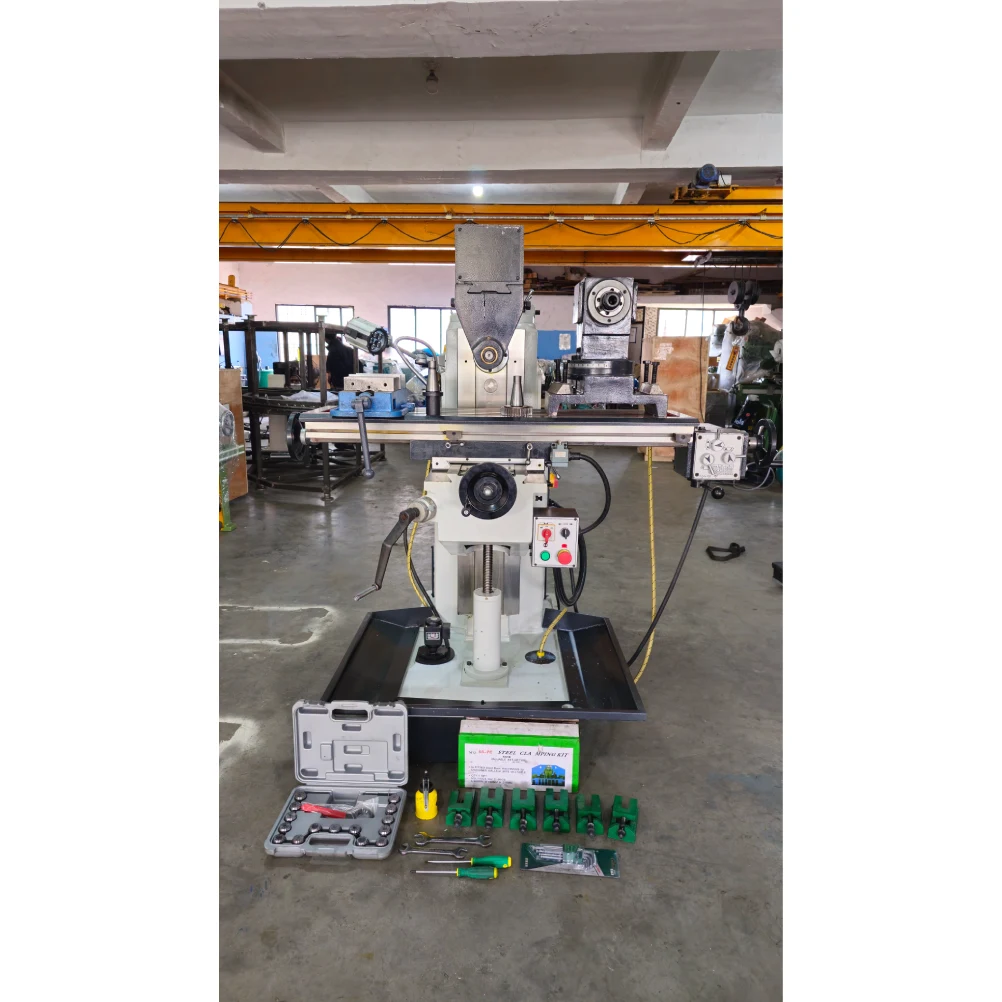

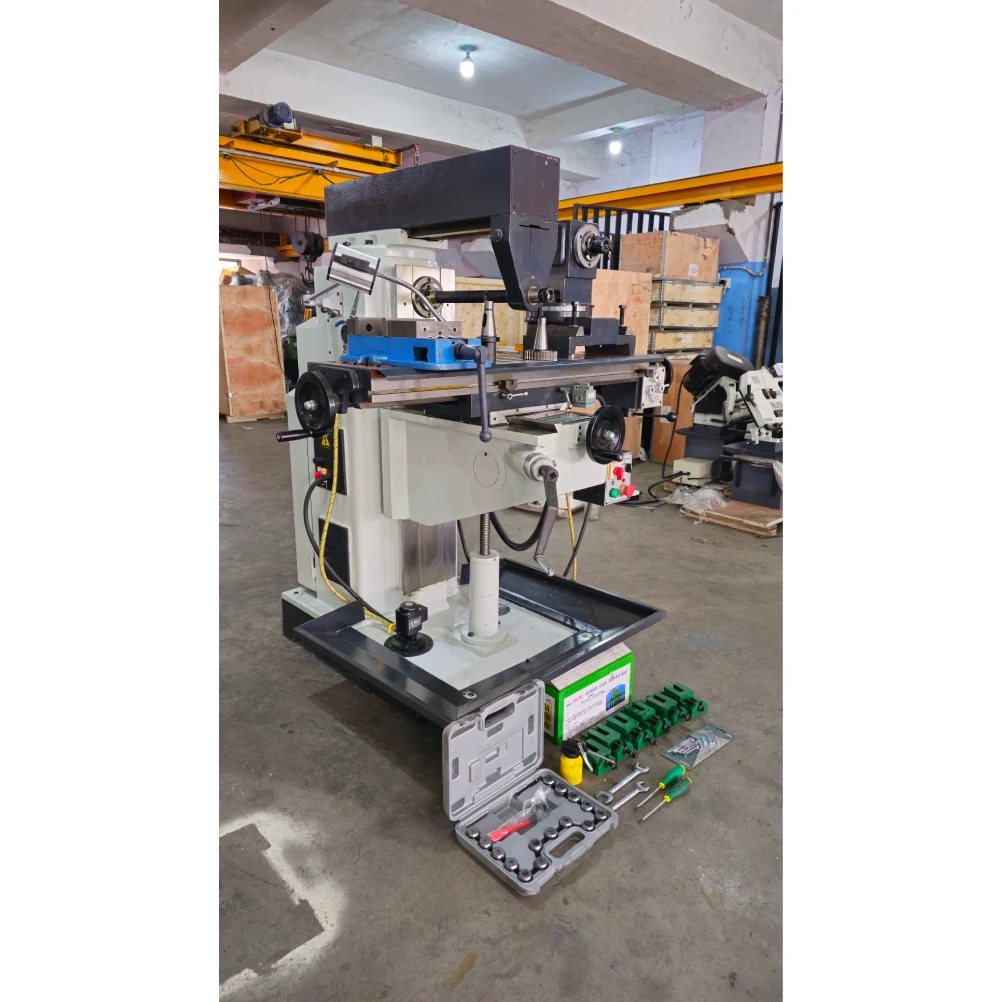

| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
|---|---|
| Horizontal Mill Arbor | 3 Axis Dro |
| Draw Bar | Precision Machine Vice |
| Working Lamp | Collet Adapter with Collet Set |
| Wrench | Dividing Head |
| Coolant Attachment | Clamping Kit |
| Oil Tray | Boring Head with Tools |
| Vertical Milling Head | Precision Keyless Drill Chuck |
| Power Feed | Rotary Table |
A:- A Universal Milling Machine is a versatile machine tool used for performing a wide range of machining operations such as milling, drilling, boring, slotting, and gear cutting. It is equipped with a swiveling table and a horizontal spindle, making it suitable for machining at different angles and complex shapes.
A:- Unlike a plain milling machine, a universal milling machine has a swiveling table (usually up to 45° on either side) which allows for helical, angular, and spiral milling operations in addition to standard milling tasks.
A:- Universal milling machines can handle mild steel, stainless steel, cast iron, aluminum, brass, copper, plastics, and other ferrous & non-ferrous materials depending on the tooling used.
A:- Most universal milling machines offer multiple spindle speed ranges (e.g., 40–1600 RPM or higher depending on model) and variable feed options for precise machining control.
A:- Table sizes vary by model (commonly 1250 x 250 mm, 1500 x 300 mm, or larger). The tables allow longitudinal (X), cross (Y), and vertical (Z) travel for flexible machining operations.
