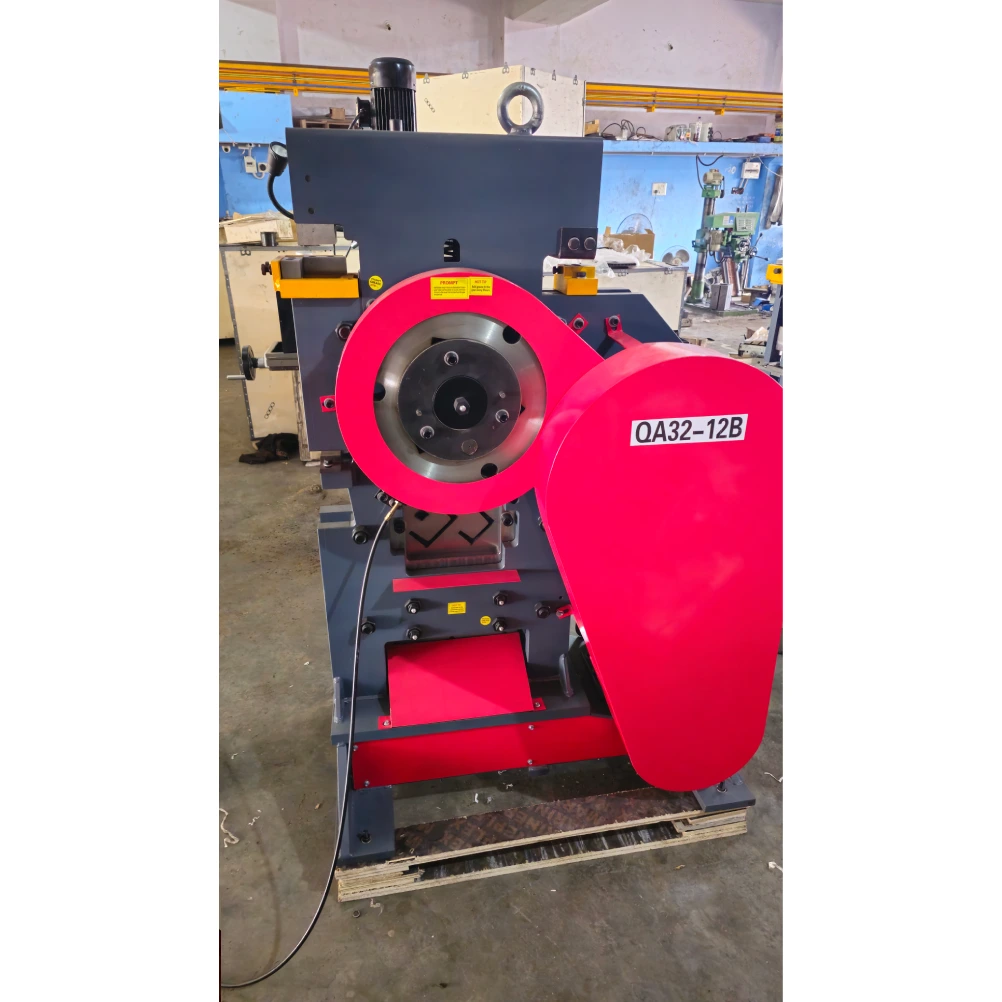

Multipurpose Iron Worker Machine QA-32 12B

Salient Features:

₹ 95,000

  • All in One Combine Punching, Shearing, Notching
  • High Production & Efficiency
  • Heavy Duty Construction
  • Quick Change Dies
Add to Quote

Description

Technical Specifications Accessories Applications Videos FAQs



MODELQA-32 12B
Max Punching Force90 TON
Cutter Travel36 MM
Cutter Speed30 TIMES / MIN
Flat Cutting330 X 12 MM
Round Cutting25 MM
Square Cutting20 X 20 MM

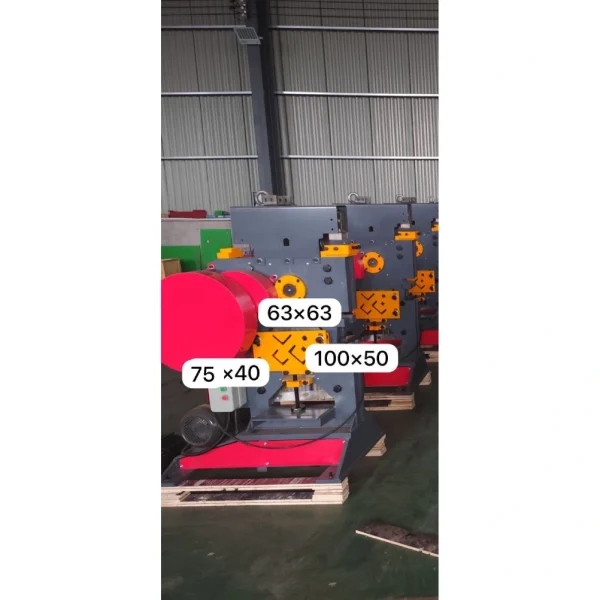

Channel Cutting100 X 50 MM / 75 X 40 MM
Angle Cutting65 X 65 MM

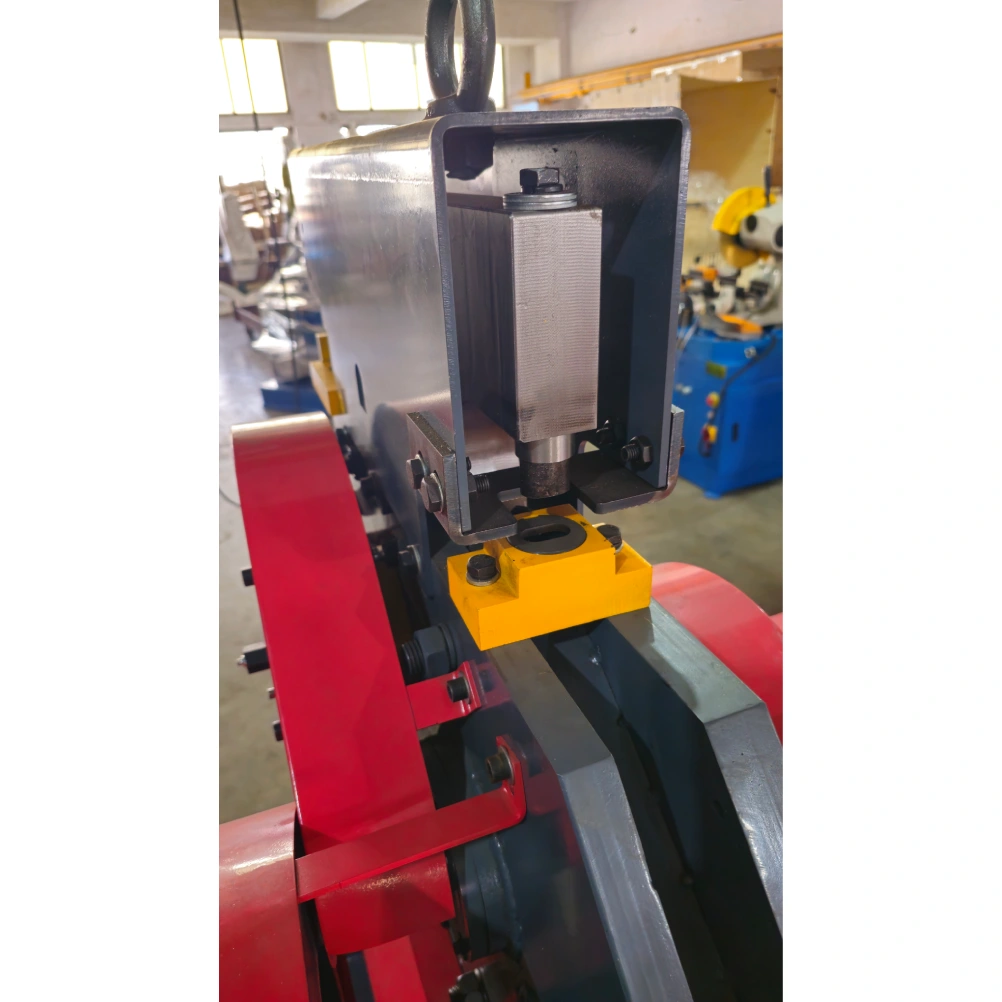

Round Hole Punching18 MM
Round Hole Punching12 MM [PLATE TYPE]
Motor4 KW
Approx Weight950 KG
Machine Dimension1200 X 750 X 1600 MM

A:- The QA-32 12B is a high-capacity hydraulic iron worker machine designed for heavy-duty fabrication tasks. It combines punching, shearing, notching, bending, and bar cutting into one robust machine, making it suitable for large-scale industrial and fabrication workshops.
A:- The QA-32 12B can typically punch holes up to 38–45 mm in mild steel plates (depending on material thickness and grade). With special dies, it can punch customized shapes and larger holes.
A:- It can process mild steel, stainless steel, alloy steel, copper, aluminum, and other ferrous & non-ferrous metals effectively within its rated capacity.
A:- The machine generally requires a 3-phase motor between 7.5 HP to 10 HP, depending on the model configuration and workload.
A:- Yes, it can be equipped with custom-designed punches, dies, and notching tools to meet specific requirements.
